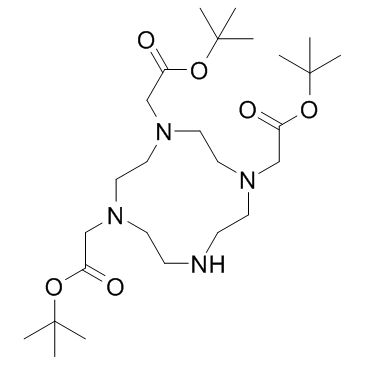

DO3A tert-Butyl ester (DO3A tert-butyl)
(Synonyms: 1,4,7,10-四氮杂环十二烷-1,4,7-三乙酸三叔丁酯,DO3A tert-butyl; DO3A-t-Bu-ester) 目录号 : GC30357DOTA叔丁酯是环状甲苯磺酰胺的苄基衍生物;可直接硝化;氢化铝锂去保护后更方便的加入硝基。
Cas No.:122555-91-3
Sample solution is provided at 25 µL, 10mM.
Quality Control & SDS
- View current batch:
- Purity: >98.00%
- COA (Certificate Of Analysis)
- SDS (Safety Data Sheet)
- Datasheet
DOTA tert-Butyl ester is a benxyl derivative of the cyclic tosamide; can be nitrated directly; is more convenient to incorporate the nitro group after deprotection lithium aluminum hydride.
[1]. Martha L Gilbert, et al. A new synthetic route to 2-(p-nitrobenzyl)-1,4,7,10-tetraazacyclododecane. doi:10.1016/S0040-4039(00)73873-1
Cas No. | 122555-91-3 | SDF | |
别名 | 1,4,7,10-四氮杂环十二烷-1,4,7-三乙酸三叔丁酯,DO3A tert-butyl; DO3A-t-Bu-ester | ||
Canonical SMILES | O=C(OC(C)(C)C)CN1CCN(CC(OC(C)(C)C)=O)CCNCCN(CC(OC(C)(C)C)=O)CC1 | ||
分子式 | C26H50N4O6 | 分子量 | 514.7 |
溶解度 | DMSO : ≥ 125 mg/mL (242.86 mM) | 储存条件 | Store at -20°C |
General tips | 请根据产品在不同溶剂中的溶解度选择合适的溶剂配制储备液;一旦配成溶液,请分装保存,避免反复冻融造成的产品失效。 储备液的保存方式和期限:-80°C 储存时,请在 6 个月内使用,-20°C 储存时,请在 1 个月内使用。 为了提高溶解度,请将管子加热至37℃,然后在超声波浴中震荡一段时间。 |
||
Shipping Condition | 评估样品解决方案:配备蓝冰进行发货。所有其他可用尺寸:配备RT,或根据请求配备蓝冰。 |
制备储备液 | |||
1 mg | 5 mg | 10 mg | |
1 mM | 1.9429 mL | 9.7144 mL | 19.4288 mL |
5 mM | 0.3886 mL | 1.9429 mL | 3.8858 mL |
10 mM | 0.1943 mL | 0.9714 mL | 1.9429 mL |
第一步:请输入基本实验信息(考虑到实验过程中的损耗,建议多配一只动物的药量) | ||||||||||
给药剂量 | mg/kg | 动物平均体重 | g | 每只动物给药体积 | ul | 动物数量 | 只 | |||
第二步:请输入动物体内配方组成(配方适用于不溶于水的药物;不同批次药物配方比例不同,请联系GLPBIO为您提供正确的澄清溶液配方) | ||||||||||
% DMSO % % Tween 80 % saline | ||||||||||
计算重置 |
计算结果:
工作液浓度: mg/ml;
DMSO母液配制方法: mg 药物溶于 μL DMSO溶液(母液浓度 mg/mL,
体内配方配制方法:取 μL DMSO母液,加入 μL PEG300,混匀澄清后加入μL Tween 80,混匀澄清后加入 μL saline,混匀澄清。
1. 首先保证母液是澄清的;
2.
一定要按照顺序依次将溶剂加入,进行下一步操作之前必须保证上一步操作得到的是澄清的溶液,可采用涡旋、超声或水浴加热等物理方法助溶。
3. 以上所有助溶剂都可在 GlpBio 网站选购。
Multimetallic complexes and functionalized gold nanoparticles based on a combination of d- and f-elements
The new DO3A-derived dithiocarbamate ligand, DO3A-(t)Bu-CS2K, is formed by treatment of the ammonium salt [DO3A-(t)Bu]HBr with K2CO3 and carbon disulfide. DO3A-(t)Bu-CS2K reacts with the ruthenium complexes cis-[RuCl2(dppm)2] and [Ru(CH═CHC6H4Me-4)Cl(CO)(BTD)(PPh3)2] (BTD = 2,1,3-benzothiadiazole) to yield [Ru(S2C-DO3A-(t)Bu)(dppm)2](+) and [Ru(CH═CHC6H4Me-4)(S2C-DO3A-(t)Bu)(CO)(PPh3)2], respectively. Similarly, the group 10 metal complexes [Pd(C,N-C6H4CH2NMe2)Cl]2 and [PtCl2(PPh3)2] form the dithiocarbamate compounds, [Pd(C,N-C6H4CH2NMe2)(S2C-DO3A-(t)Bu)] and [Pt(S2C-DO3A-(t)Bu)(PPh3)2](+), under the same conditions. The linear gold complexes [Au(S2C-DO3A-(t)Bu)(PR3)] are formed by reaction of [AuCl(PR3)] (R = Ph, Cy) with DO3A-(t)Bu-CS2K. However, on reaction with [AuCl(tht)] (tht = tetrahydrothiophene), the homoleptic digold complex [Au(S2C-DO3A-(t)Bu)]2 is formed. Further homoleptic examples, [M(S2C-DO3A-(t)Bu)2] (M = Ni, Cu) and [Co(S2C-DO3A-(t)Bu)3], are formed from treatment of NiCl2·6H2O, Cu(OAc)2, or Co(OAc)2, respectively, with DO3A-(t)Bu-CS2K. The molecular structure of [Ni(S2C-DO3A-(t)Bu)2] was determined crystallographically. The tert-butyl ester protecting groups of [M(S2C-DO3A-(t)Bu)2] (M = Ni, Cu) and [Co(S2C-DO3A-(t)Bu)3] are cleaved by trifluoroacetic acid to afford the carboxylic acid products, [M(S2C-DO3A)2] (M = Ni, Cu) and [Co(S2C-DO3A)3]. Complexation with Gd(III) salts yields trimetallic [M(S2C-DO3A-Gd)2] (M = Ni, Cu) and tetrametallic [Co(S2C-DO3A-Gd)3], with r(1) values of 11.5 (Co) and 11.0 (Cu) mM(-1) s(-1) per Gd center. DO3A-(t)Bu-CS2K can also be used to prepare gold nanoparticles, Au@S2C-DO3A-(t)Bu, by displacement of the surface units from citrate-stabilized nanoparticles. This material can be transformed into the carboxylic acid derivative Au@S2C-DO3A by treatment with trifluoroacetic acid. Complexation with Gd(OTf)3 or GdCl3 affords Au@S2C-DO3A-Gd with an r(1) value of 4.7 mM(-1) s(-1) per chelate and 1500 mM(-1) s(-1) per object.
Synthesis of a versatile building block combining cyclen-derivative DO3A with a polyamine via a rigid spacer
The five-step synthesis of a polydentate building block combining a cyclen-based macrocycle (DO3A) with N-(2-aminoethyl)propane-1,3-diamine, which are linked through the xylylen moiety as a rigid C-spacer is described. These two molecular parts were coupled by subsequent bromine atom substitution in 1,4-bis(bromomethyl)benzene. First, N-(2-aminoethyl)propane-1,3-diamine was protected by phthaloyl moieties and then it was reacted with 1,4-bis(bromomethyl)benzene to form (2-phthalimidoethyl)(3-phthalimido-prop-1-yl)(4-bromomethylbenzyl)amine (2). This compound underwent a substitution reaction with DO3A in the form of its tert-butyl esters leading to the intermediate 1-{4-[(2-phthalimidoethyl)(3-phthalimidoprop-1-yl)aminomethyl]phenylmethyl}-4,7,10-tris(t-butoxy-carbonylmethyl)-1,4,7,10-tetraazacyclododecane (3). The phthaloyl as well as the t-butyl protecting groups were removed in the next two reaction steps to form the final product 1-{4-[(2-aminoethyl)(3-aminoprop-1-yl)aminomethyl]phenylmethyl}-4,7,10-tris(carboxy-methyl)-1,4,7,10-tetraazacyclododecane (5). The intermediates 1-4 as well as the final product 5 were characterized by elemental analysis, mass spectrometry, and multinuclear (1H and 13C) and two-dimensional NMR spectroscopy. The final product 5 could serve as a potential building block in subsequent syntheses of binuclear complexes of lanthanides and/or transition metals.
Synthesis and luminescence properties of lanthanide complexes incorporating a hydralazine-derived chromophore
Reaction of 1-hydrazinophthalazine with chloroacetyl chloride yields 3-chloromethyl-1,2,4-triazolo-phthalazine. Reaction of this product with the tris tert-butyl ester of DO3A yields a triazolophthalazine appended macrocycle. Hydrolysis and complexation with lanthanide ions gives access to a series of lanthanide complexes (Ln = Nd, Eu, Yb, Er); these are all luminescent and exhibit sensitisation of the lanthanide centre by the chromophore.
